Atomization Pressure Nozzle Spray Dryer Stainless Steel Spray Drying In Industry

Atomization Pressure Nozzle Spray Dryer Stainless Steel Spray Drying In Industry

MOQ: 1set
Supply Capacity: 200sets/Year
Detail Information
Brand Name
SULI
Type:
Pressure Spray
Material:
Stainless Steel , Carbon Steel
Trademark:
SU LI
Specification:
Deponds On The Model
Origin:
Jiangsu, China (Mainland)
Minimum Order Quantity:
1set
Supply Ability:
200sets/Year
High Light:

atomization pressure nozzle spray dryer

,

stainless steel spray drying in industry

,

pressure nozzle spray dryer stainless steel

Product Description

Good Fluidity and Pressure Atomization Spray Dryer with Total Height of 7800-19000 mm

Product Description



Product Description

This unit is a device that can complete drying and pelletizing at the same time. According to the process requirements, the pressure, flow rate, and size of the orifices of the feed pump can be adjusted to obtain the desired spherical particles in a certain size ratio.

Working principle

The working process of this unit is that the feed liquid passes through the high pressure input of the diaphragm pump, sprays droplets of mist, and then flows down in parallel with the hot air. Most of the particles are collected from the bottom outlet of the tower, and the exhaust gas and its tiny powder are separated by cyclones. The device is separated and the exhaust gas is discharged by an exhaust fan. The powder is collected by a pollination cylinder located at the lower end of the cyclone separator. The fan outlet can also be equipped with a secondary dust removal device with a recovery rate of 96-98%.



Performence characteristics

   Drying speed is fast, the surface area of material liquid is greatly increased after atomization. In the hot air current, 95%-98% of water can be evaporated instantaneously, and the drying time only needs ten seconds to tens of seconds, especially suitable for Drying of heat-sensitive materials.
    All products are spherical particles, uniform particle size, good fluidity, good solubility, high product purity, and good quality.
    Wide range of use, according to the characteristics of the material, you can use hot air drying, you can also use cold air granulation, the adaptability of the material.
    The operation is simple and stable, the control is convenient, and it is easy to realize automatic operation.

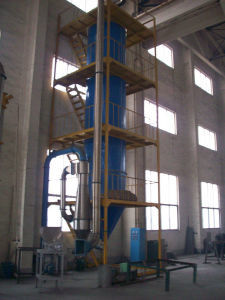

Atomization Pressure Nozzle Spray Dryer Stainless Steel Spray Drying In Industry 0

Spray drying particles:
    chemical: catalyst, resin, synthetic detergent, grease, ammonium sulfate, dyes, dye intermediates, white carbon black, graphite, ammonium phosphate and so on.
    Foods: Amino acids and their analogues, seasonings, proteins, starches, dairy products, coffee extracts, fishmeal, meat extract, etc.
    Pharmaceuticals: proprietary Chinese medicines, pesticides, antibiotics, pharmaceutical granules, etc.
    Ceramics: Magnesium oxide, china clay, various metal oxides, dolomite, etc.
    Spray granulation: various fertilizers, alumina, ceramic powder, pharmaceuticals, heavy metal superhard steel, chemical fertilizers, granular laundry detergent, proprietary Chinese medicines.
    Spray Cooling Granulation: Amine fatty acid, paraffin, glycerin, tallow, etc. Spray crystallization, spray concentration, spray reactions, etc. are often used.

Product Parameters

     Technical specifications

model unit 50 100 150 200 300 500 1,000
Moisture evaporation Kg 50 100 150 200 300 500 1,000
Dimensions (Ф×H) Mm 1600×8900 2000×11500 2400×13500 2800×14800 3200×15400 3800×1880 4600×22500
High pressure pump pressure mPa 2 to 10
power KW 8.5 14 22 24 30 82 30
Inlet air temperature o C 140~350
Product water content % <5 (up to 0.5)
Material recovery % >97
Electric heating KW 75 120 150 When the temperature is lower than 200, according to the actual technology
Electric steam Mpa+KW 0.5+54 0.6+90 0.6+108
Hot stove Kcal/h 100000 150000 200000 300000 400000 500000 1200000

★ Above evaporation is the maximum evaporation.





Company Profile

CHANGZHOU SULI DRYING EQUIPMENT CO.,LTD.is an innovative drying industry enterprises,the state drying equipment,pharmaceutical machinery,chemical and food machinery industry professional production companies.The company has always adhere to the"dedication,inovation,"the purpose of the work,continue to strengthen the development of innocative technological content of products and product currently has a drying,granulation,mixing,crushing nearly a hundred varieties of products.Widely used in pharmaceutial,chemical,food,enzymes,buildingmaterials,electronics,feed,agricultural processing and many other industries,has won the majority of users.

Since its establishment,holding"technology to upgrade the industry,quality and create value"business philosophy,brought together and trained a team of experienced produciton and technical services team,to continuously improve the product,updating and development to ensure that the advanced,high-quality products and good service to customers.
The company of"integrity,timely and thoughful"purpose of business services,through continuous efforts of all employees,will create greater value for you and return!
SuLi company with a variety of sample prototype,welcome friends to visit our small test!
