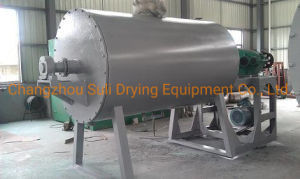

Vacuum Rake Sludge Drying Machine ZPG Wastewater Sludge Dryer

Vacuum Rake Sludge Drying Machine ZPG Wastewater Sludge Dryer

MOQ: 1set
Supply Capacity: 280sets/Year
Detail Information
Brand Name
SULI
Model Number
ZPG
Type:
Vacuum Rake
Pressure In The Cylinder(MPa):
-0.09 ~ -0.096
Trademark:
SU LI
Specification:
Deponds On The Model
Origin:
Jiangsu, China (Mainland)
Material:
SUS304/316L
Minimum Order Quantity:
1set
Supply Ability:
280sets/Year
Highlight:

rake sludge drying machine

,

sludge drying machine zpg

,

zpg wastewater sludge dryer

Product Description

SU LI Zpg Vacuum Rake Drying Machine for Sludge with High-Performance Features

Product Description

Working principle
This machine is a novel horizontal intermittent type vacuum drying equipment. The wet material is conductively evaporated. The scraper stirrer continuously removes the material on the hot surface and forms a circulating flow in the container. After the water evaporates, Vacuum pump out.
Performance characteristics
This machine uses a large area of sandwich heating, heat transfer surface, high thermal efficiency.
The machine is set to stir, so that the material in the cylinder to form a continuous cycle of state, to further improve the uniformity of the material heated.
The machine is set to stir, so that the slurry, paste, paste material can be dried smoothly.
Adaptable materials
Pharmaceuticals, food, chemical and other industries conduct the following materials drying:
Suitable for paste, paste, powder materials;
Heat-sensitive materials that require low temperature drying;
Easily oxidized, explosive, strong stimulation, highly toxic materials;
Material recovery requires an organic solvent.
Schematic
Vacuum Rake Sludge Drying Machine ZPG Wastewater Sludge Dryer 0
Technical specifications
Project Model
Name Unit ZPG-500 ZPG-750 ZPG-1000 ZPG-1500 ZPG-2000 ZPG-3000
Working volume L 300 450 600 900 1200 1800
Heating area M 2 6 7.6 9.3 12.3 14.6 19.3
Stirring speed Rpm 6-30 stepless speed regulation
Power Kw 4 5.5 5.5 7.5 11 15
Sandwich design pressure (hot water) MPa ≤ 0.3
Vacuum inside the cylinder MPa -0.09 to 0.096
 Note: The amount of water evaporation is related to the characteristics of the material and the hot air inlet and outlet temperatures. When the outlet temperature is 90 o C, the water evaporation curve is shown in the above figure (for selection reference). As the product is continuously updated, the relevant parameters are changed without prior notice.
