| MOQ: | 1set |
| Supply Capacity: | 280sets/Year |
Working principle

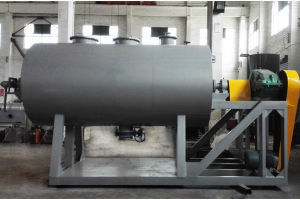

This machine is a novel horizontal intermittent type vacuum drying equipment. The wet material is conductively evaporated. The scraper stirrer continuously removes the material on the hot surface and forms a circulating flow in the container. After the water evaporates, Vacuum pump out.Adaptable materials
Pharmaceuticals, food, chemical and other industries conduct the following materials drying:
Suitable for paste, paste, powder materials;
Heat-sensitive materials that require low temperature drying;
Easily oxidized, explosive, strong stimulation, highly toxic materials;
Material recovery requires an organic solvent.
Schematic
Technical specifications
| Project | Model | ||||||
| Name | Unit | ZPG-500 | ZPG-750 | ZPG-1000 | ZPG-1500 | ZPG-2000 | ZPG-3000 |
| Working volume | L | 300 | 450 | 600 | 900 | 1200 | 1800 |
| Heating area | M 2 | 6 | 7.6 | 9.3 | 12.3 | 14.6 | 19.3 |
| Stirring speed | Rpm | 6-30 stepless speed regulation | |||||
| Power | Kw | 4 | 5.5 | 5.5 | 7.5 | 11 | 15 |
| Sandwich design pressure (hot water) | MPa | ≤ 0.3 | |||||
| Vacuum inside the cylinder | MPa | -0.09 to 0.096 | |||||
CHANGZHOU SULI DRYING EQUIPMENT CO.,LTD.is an innovative drying industry enterprises,the state drying equipment,pharmaceutical machinery,chemical and food machinery industry professional production companies.The company has always adhere to the"dedication,inovation,"the purpose of the work,continue to strengthen the development of innocative technological content of products and product currently has a drying,granulation,mixing,crushing nearly a hundred varieties of products.Widely used in pharmaceutial,chemical,food,enzymes,buildingmaterials,electronics,feed,agricultural processing and many other industries,has won the majority of users.
Since its establishment,holding"technology to upgrade the industry,quality and create value"business philosophy,brought together and trained a team of experienced produciton and technical services team,to continuously improve the product,updating and development to ensure that the advanced,high-quality products and good service to customers.
The company of"integrity,timely and thoughful"purpose of business services,through continuous efforts of all employees,will create greater value for you and return!
SuLi company with a variety of sample prototype,welcome friends to visit our small test!
|
|
