Granu squeezers for various specifications for pharmaceutical, chemical, food, and feed

Granu squeezers for various specifications for pharmaceutical, chemical, food, and feed

MOQ: 1 set
Price: Negotiation
Standard Packaging: wooden case (fumigation free) or as per customers’ requirements
Payment Method: T/T
Detail Information
Place of Origin
China
Brand Name
SULI
Certification
ISO9001
Model Number
SET
Material:
SUS304 Or 316L
Minimum Order Quantity:
1 set
Price:
Negotiation
Packaging Details:
wooden case (fumigation free) or as per customers’ requirements
Payment Terms:
T/T
Product Description

Overview:


In the scattered body that coexist with solid powder and liquid and is dominated by solid phases, the decentralized auto -adhesion (or external adhesive) is used to use compulsory methods (such as squeezing, gravity, centrifugal force, mechanical power, air flow impulse, etc. ) Make the basic particles of solid powder bond and increase each other. And form a certain shape and granularity, concentrated particle group. The wet granules are composed of mixed (pinch), granular, drying and its auxiliary system equipment. After the powder is mixed (pinching), it enters the wet product required to form the granularity. The granular finished product is obtained through drying, thereby achieving the purpose of granules.
The SET single screw extrusion squeezer is divided into front materials and side materials. The diameter of the previous material formula is generally selected between 1.5-12mm. Choose the shape of the particles to be cylindrical, the granularity rate is ≥95%. The production port is equipped with a cut particles. The long strip is dry and naturally becomes a section of particles. The speed is fast.



Scope of application:


It is widely suitable for products that require granules such as rubber auxiliary, food additives, plastic additives, powdery activated carbon, catalysts, feed, pesticides, dyes, pigments, daily chemicals, pharmaceuticals and other industries.

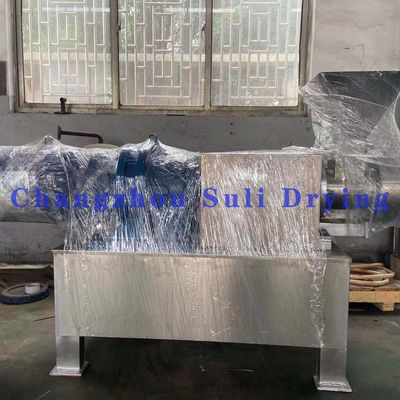

Granu squeezers for various specifications for pharmaceutical, chemical, food, and feed 0



The main advantage:


Due to the completion of the processing process in the wet state, the operation conditions of the granules and its subsequent processes (such as dryness, packaging, etc.) have been greatly improved. Generally, it can reduce the on -site dust of more than 90%. Through granulation, it can avoid the phenomenon of use, bridges, pulsating, etc. that are prone to appear in powder products. At the same time, the secondary pollution caused by the use of powder is avoided, which greatly improves the physical properties of the product. Under normal circumstances, the accumulation proportion of granular products has increased significantly, so it can save space for transportation, storage, and packaging. For multiple composite and mixed products, granulation can avoid bias analysis of each group, thereby truly ensuring the quality of composite products.



Granu squeezers for various specifications for pharmaceutical, chemical, food, and feed 1



Technical specification

model Screw diameter Motor Power [kw]

Rotating speed

[rdivm]

Dimensions L*D*H  [mm] weight [kg]
SET-100 100 7.5 11-110 1800*500*1000 810
SET-140 140 15 11-110 2000*800*1430 1000
SET-180 180 15 11-110 3000*950*1350 2000
