CT-C Series Hot Air Circulation Oven Drying Closed Circulation System Advanced Technology

CT-C Series Hot Air Circulation Oven Drying Closed Circulation System Advanced Technology

MOQ: 20set
Price: Negotiation
Standard Packaging: According to customer requirements
Payment Method: L/C, T/T, Paypal, T/T
Detail Information
Place of Origin
China
Brand Name
SULI
Certification
ISO9001
Model Number
CT-C
Model NO.:
CT-C
Material:
Stainless Steel 304 And 316L
Control System:
PLC
Heat Source:
Electric Heating
Minimum Order Quantity:
20set
Price:
Negotiation
Packaging Details:
According to customer requirements
Payment Terms:
L/C, T/T, Paypal, T/T
Product Description

Product Description

CT-C series hot air circulation oven is equipped with low noise and high temperature axial fan and automatic temperature control system. The whole circulation system is completely closed, so that the thermal efficiency of the oven is increased from 3-7% in the traditional drying room to the current 35- 45%, the highest thermal efficiency up to 50%. The success of the CT-C hot air circulation oven has made the hot air circulation oven in China reach the advanced level at home and abroad. Save a lot of energy for our country and improve the economic benefits of the company. In 1990, the State Administration of Pharmaceuticals released the industry standard, and the uniform model is RXH.
The heating source is steam, electricity, far infrared, and electric vapor for users' choices.
Using temperature: Steam heating 50-140 ℃, maximum 150
Electricity, far infrared temperature 50-350
Auto-control system and computer control system are available for users to choose from.
Common steam pressure is 0.02-0.8MPa (0.2~8kg/m 2 ).
Equipped with electric heating, calculate 15KW according to type I, practical 5-8kw/h;
Special requirements when ordering instructions;
Non-standard oven price negotiable;
Use the temperature is greater than 140 or less than 60 , to indicate when ordering;
Factory factory car baking, baking tray size uniform, interchangeable;
Baking plate size: 460 × 640 × 45 (mm).


Performance characteristics
Most hot air circulation in the box, high thermal efficiency, save energy. The use of forced ventilation, the box is equipped with adjustable split air plate, the material is evenly dry, the heat source can be steam, hot water, electricity, far infrared, and a wide choice. The whole machine is low in noise and balanced in operation. Temperature control, easy installation and maintenance. With a wide range of application, it can dry various materials and is a universal drying equipment.
Adaptable materials are
Suitable for heat curing, drying and dehydration of materials and products in the pharmaceutical, chemical, food, agricultural and sideline products, aquatic products, light industry, heavy industry and other industries. Such as raw materials, crude drugs, Chinese Herbal Medicine, extracts, powders, granules, granules, water pills, bottles, pigment dyes, dehydrated vegetables, dried fruits, sausages, plastic resins, electrical components, baking and so on.


Technical specifications

Industry standard model Technical Specifications
Model Specifications
Each drying amount
(kg)
With power
(kw)
Consumption of steam
(kg/h)
Radiating area
(m 2 )
Air volume
(m3/h)
Temperature difference between upper and lower
( o C)
With baking plate Dimensions
Width × Depth × Height
Supporting car Equipment weight
RXH-14-B CT-I 120 1.1 20 20 2800 ±2 48 2430×1200×2375 2 1200
RXH-27-B CT-II 240 2.2 40 40 5200 ±2 96 2430×2200×2433 4 1500
RXH-41-B CT-III 360 3 60 80 8000 ±2 144 3430×2200×2620 6 2000
RXH-54-B CT-IV 480 4 80 100 9800 ±2 192 4460×2200×2620 8 2300
RXH-5-C CT-CO 25 0.45 5 5 3450 ±2 16 1130×1100×1750 0 800
RXH-7-C CT-C-IA 50 0.45 10 10 3450 ±2 24 1400×1200×2000 1 1, 000
RXH-14-C CT-C-I 120 0.45 18 20 3450 ±2 48 2300×1200×2000 2 1500
RXH-27-C CT-C-II 240 0.9 36 40 6900 ±2 96 2300×2200×2000 4 1800
RXH-27A-C CT-C-IIA 240 0.9 36 40 6900 ±2 96 4460×1200×2290 4 1800
RXH-41-C CT-C-III 360 1.35 54 80 10350 ±2 144 3430×2200×2000 6 2200
RXH-42A-C CT-C-IIIA 360 1.35 54 80 10350 ±2 144 2300×3200×2000 6 2200
RXH-54-C CT-C-IV 480 1.8 72 100 13800 ±2 192 4460×2200×2290 8 2800
RXH-25-A High-efficiency high-temperature far-infrared sterilization oven power matching according to temperature requirements 1200×1000×1600 1 1200

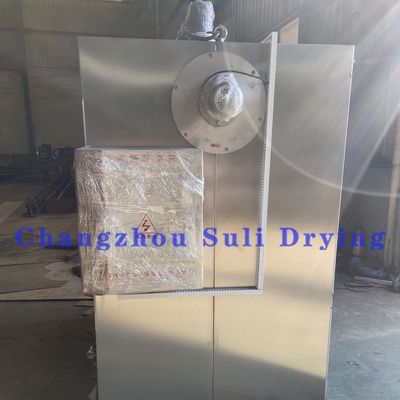

CT-C Series Hot Air Circulation Oven Drying Closed Circulation System Advanced Technology 0
