Versatile Vacuum Rake Drying Machine for Pharmaceuticals and Food Industries

Versatile Vacuum Rake Drying Machine for Pharmaceuticals and Food Industries

MOQ: 20set
Price: Negotiation
Standard Packaging: According to customer requirements
Payment Method: L/C, T/T
Supply Capacity: 280sets/Year
Detail Information
Place of Origin
China
Brand Name
SULI
Certification
ISO9001
Model Number
ZPG
Model NO.:
ZPG
Specification:
Deponds On The Model
Material:
SUS304 Or 316L Orcarbon Steel
Control System:
PLC
Minimum Order Quantity:
20set
Price:
Negotiation
Packaging Details:
According to customer requirements
Payment Terms:
L/C, T/T
Supply Ability:
280sets/Year
Product Description

Working principle

This machine is a novel horizontal intermittent type vacuum drying equipment. The wet material is conductively evaporated. The scraper stirrer continuously removes the material on the hot surface and forms a circulating flow in the container. After the water evaporates, Vacuum pump out.
Performance characteristics
This machine uses a large area of sandwich heating, heat transfer surface, high thermal efficiency.
The machine is set to stir, so that the material in the cylinder to form a continuous cycle of state, to further improve the uniformity of the material heated.
The machine is set to stir, so that the slurry, paste, paste material can be dried smoothly.
Adaptable materials
Pharmaceuticals, food, chemical and other industries conduct the following materials drying:
Suitable for paste, paste, powder materials;
Heat-sensitive materials that require low temperature drying;
Easily oxidized, explosive, strong stimulation, highly toxic materials;
Material recovery requires an organic solvent.
Schematic

Technical specifications
Project Model
Name Unit ZPG-500 ZPG-750 ZPG-1000 ZPG-1500 ZPG-2000 ZPG-3000
Working volume L 300 450 600 900 1200 1800
Heating area M 2 6 7.6 9.3 12.3 14.6 19.3
Stirring speed Rpm 6-30 stepless speed regulation
Power Kw 4 5.5 5.5 7.5 11 15
Sandwich design pressure (hot water) MPa ≤ 0.3
Vacuum inside the cylinder MPa -0.09 to 0.096

 Note: The amount of water evaporation is related to the characteristics of the material and the hot air inlet and outlet temperatures. When the outlet temperature is 90 o C, the water evaporation curve is shown in the above figure (for selection reference). As the product is continuously updated, the relevant parameters are changed without prior notice.

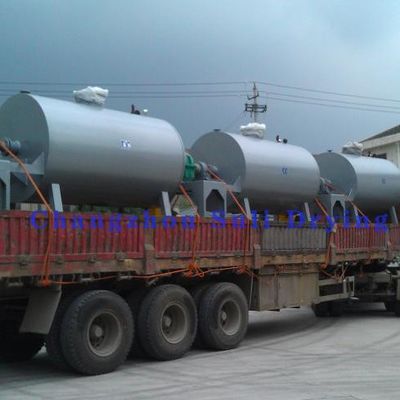

Rake dryer pictures



Versatile Vacuum Rake Drying Machine for Pharmaceuticals and Food Industries 0



Versatile Vacuum Rake Drying Machine for Pharmaceuticals and Food Industries 1
