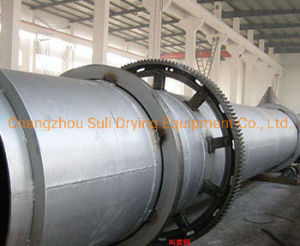

Magnetic Powder Drum Dryer Machine Solution Rotary Dryer Machine

Magnetic Powder Drum Dryer Machine Solution Rotary Dryer Machine

MOQ: 1set
Supply Capacity: 120sets/Year
Detail Information
Brand Name
SULI
Movement Way:
Agitation
Drum Number:
Single
Trademark:
SULI
Specification:
Deponds On The Model
Origin:
Jiangsu, China (Mainland)
Minimum Order Quantity:
1set
Supply Ability:
120sets/Year
High Light:

drum dryer machine solution

,

solution rotary dryer machine

,

magnetic powder drum dryer machine

Product Description

Changzhou Solution Magnetic Powder Drum Dryer Machine for Solution Production Line

Product Description

Su li dry professional production rotary dryer.
The rotary dryer is a type of industrial dryer employed to reduce or minimize the liquid moisture content of the material it is handling by bringing it into direct contact with a heated gas.
The dryer is made up of a large, rotating cylindrical tube, usually supported by concrete columns or steel beams. The dryer is inclined to slopes slightly so that the discharge end is lower than the material feed end in order to convey the material through the dryer under gravity. Material to be dried enters the dryer, and as the dryer rotates, the material is lifted up by a series of internal fins lining the inner wall of the dryer. When the material gets high enough to roll back off the fins, it falls back down to the bottom of the dryer, passing through the hot gas stream as it falls. This gas stream can either be moving toward the discharge end from the feed end (known as co-current flow), or toward the feed end from the discharge end (known as counter-current flow). The gas stream can be made up of a mixture of air and combustion gases from a burner, in which case the dryer is called a direct heated dryer. Alternatively, the gas stream may consist of air or another (sometimes inert) gas that is preheated. When the gas stream is preheated by some means where burner combustion gases do not enter the dryer, the dryer known as an indirect-heated type. Often, indirect heated dryers are used when product contamination is a concern. In some cases, a combination of direct-indirect heated rotary dryers are also available to improve the overall efficiency.
   Adapt to the material
1chemical, mining, metallurgy and other industries large particles, dry material than the major, such as: mines, blast furnace slag, coal, metal powder, phosphate fertilizer, ammonium sulfate.
 2For the drying of powder and granular materials with special requirements, such as: HP foaming agent, distiller's grains, light calcium carbonate, activated clay, magnetic powder, graphite, and dregs.
 3Requires low-temperature drying, and large batches of continuous drying materials.
   Performance characteristics
 4Rotary dryer has a high degree of mechanization and a large production capacity.
 5The resistance of the fluid through the cylinder is small and the function consumption is low.
 6The adaptability to material properties is relatively strong.
 7Stable operation, low operating cost, and good product drying uniformity.

Schematic

  Magnetic Powder Drum Dryer Machine Solution Rotary Dryer Machine 0
Technical specifications
model Direct heating downstream Direct heating downstream Direct heating countercurrent Direct heating countercurrent Composite heating Composite heating
Material type ore HP foaming agent Blast furnace slag Thiammonium Phosphate fertilizer coal
Processing capacity (kg/h) 1,000 466 15000 20000 12000 5000
Water content (%) 30 13 6 1.5 5 6.5
Final moisture content (%) 15 0.3 1 0.1 0.1 0.1
Average particle size (mm) 6.5 0.05 4.7 0.5-1.7 0.5 5
Material accumulation weight (kg/m 3 ) 770 800 1890 1100 1500 750
Hot air volume (kg/h) 3900 5400 10750 9800 6500 16000
Inlet gas temperature ( oC) 600 165 500 180 650 570
Material outlet temperature ( o C)   42 100 70 80 75
heating method gas Steam heating heavy oil Coal hot stove heavy oil heavy oil
Loading factor   6.3 7 7.5 7.8 18
Speed (rpm) 4 4 3.5 3 4 2
Tilt 0.04 0.005 0.03 0.05 0.05 0.043
Copy board number 12 twenty four 12 twenty two Inner cylinder outer 8 Inner cylinder outer 16 6 12
Dryer diameter (m) 2.0 1.5 2 2.3 Outer cylinder 2 inner cylinder 0.84 Outer cylinder 2.4 Inner cylinder 0.95
Dryer length (m) 20 12 17 15 10 16
Drive power (kw) twenty two 7.5 15 11 11 15
