Stainless Steel Vibrating Fluid Bed Dryer In Pharmaceutical Industry

Stainless Steel Vibrating Fluid Bed Dryer In Pharmaceutical Industry

MOQ: 1set
Supply Capacity: 200sets/Year
Detail Information
Brand Name
SULI
Operational Method:
Continuous
Application:
Food, Pharmaceutical,Chemic
Trademark:
SU LI
Specification:
Deponds On The Model
Origin:
Jiangsu, China (Mainland)
Minimum Order Quantity:
1set
Supply Ability:
200sets/Year
Highlight:

Stainless Steel Vibrating Fluid Bed Dryer

,

Fluid Bed Dryer In Pharmaceutical Industry

,

Stainless Vibrating Fluid Bed Dryer

Product Description

Suli produces vibrating fluidized bed dryers suitable for pharmaceutical, food and other industries to serve you.

Product Description


Product description
Boiling and drying, also known as fluidized bed, it is composed of air filter, heater, boiling bed host, cyclone separator, bag filter, high pressure centrifugal fan, operating table, due to the different nature of the drying materials, supporting dust removal Equipment, can be considered according to need, you can choose the cyclone separator, bag filter, can also choose one of them, in general, the proportion of larger particles such as powder and particle drying only need to choose the cyclone separator, the proportion of lighter Small granular and powdery materials need to be equipped with bag filter, and pneumatic feeding device and belt conveyor are available for selection.
The bulk solid material is fed into the fluidized bed dryer by a feeder. The filtered clean air is heated and sent by the blower to the bottom of the fluidized bed and contacted with the solid material through the distribution plate to form a fluid-solid heat-mass exchange. After the material is dried, it is discharged from the discharge port. The exhaust gas is discharged from the top of the fluidized bed and discharged by the cyclone dust collector and the bag filter to recover the solid powder.
Steam, electric, hot air furnace can be equipped with (according to user requirements).

Working Principle
Clean hot air is distributed into the bed through the valve plate. The wet material entering the feeder is boiled by hot air. Due to the extensive contact of hot air with the material, the process of heat and mass transfer is enhanced, so it can be dried in a short time. If the continuous type is adopted, the material enters from one end of the bed and is boiled and dried after tens of seconds to several minutes, and flows out from the other end of the bed automatically. This equipment is generally operated under negative pressure.
Adapt to materials
pharmaceuticals, chemical raw materials, food, food processing, feed drying operations. Such as: raw materials, tablets, granules, traditional Chinese medicine, health food, drink granules, corn germ, feed, plastic resins, citric acid and other powdered materials dry dehumidification. Applicable material particle size is generally 0.1 ~ 6mm, the optimal particle size is 0.5 ~ 3mm.

Installation instructions
The equipment needs to be placed flat, fixed with foot screws, and the components are well sealed.
The fan can be placed outdoors or in a self-contained silencer room. The layout can be adjusted as the case may be.

Company Profile

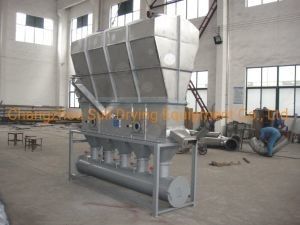

Stainless Steel Vibrating Fluid Bed Dryer In Pharmaceutical Industry 0

CHANGZHOU SULI DRYING EQUIPMENT CO.,LTD.is an innovative drying industry enterprises,the state drying equipment,pharmaceutical machinery,chemical and food machinery industry professional production companies.The company has always adhere to the"dedication,inovation,"the purpose of the work,continue to strengthen the development of innocative technological content of products and product currently has a drying,granulation,mixing,crushing nearly a hundred varieties of products.Widely used in pharmaceutial,chemical,food,enzymes,buildingmaterials,electronics,feed,agricultural processing and many other industries,has won the majority of users.

Since its establishment,holding"technology to upgrade the industry,quality and create value"business philosophy,brought together and trained a team of experienced produciton and technical services team,to continuously improve the product,updating and development to ensure that the advanced,high-quality products and good service to customers.
The company of"integrity,timely and thoughful"purpose of business services,through continuous efforts of all employees,will create greater value for you and return!
SuLi company with a variety of sample prototype,welcome friends to visit our small test!
