Stable Operation Wide Applicability And Energy Saving Fluidized Bed Dryer

Stable Operation Wide Applicability And Energy Saving Fluidized Bed Dryer

MOQ: 1 set
Price: Negotiation
Standard Packaging: According to customer requirements
Detail Information
Place of Origin
China
Brand Name
SULI
Certification
ISO9001
Model Number
ZLG
Exercise Method:
Vibration
Material:
SUS304 Or 316L
Source Of Heat:
Steam, Natural Gas, Heat Conduction Oil
Minimum Order Quantity:
1 set
Price:
Negotiation
Packaging Details:
According to customer requirements
High Light:

Stable operation fluidized bed dryer

,

Wide applicability fluidized bed dryer

,

Energy Saving Fluidized Bed Dryer

Product Description

working principle


The material from the material from the feed import of the material is entered into the machine. Under the action of the vibration, the material is thrown along the horizontal plane fluidized bed, moved forward continuously, and the hot air passes up through the fluidized bed with the wet material to change the heat. Lift from the exhaust 1: 3. Drying materials are discharged from the imported.


Adapting material


It is suitable for the dryness and cooling of chemical, pharmaceutical, food, dehydrated vegetables, food, minerals and other industries. Such as: citric acid, monosodium glutamate, borax, ammonium sulfur, compound fertilizer, radish shredded, soy sip, lees, seeds, slag, sugar, etc.


Performance characteristics


◎ The vibration source is driven by vibration motor. It is stable, convenient for maintenance, low noise, and long life.
◎ Fate is well -proportioned, no gap and blowing phenomenon, you can get uniform drying and cooling products.
◎ Good adjustable and wide -faced surface. The thickness of the material and the changes in the mobility of the machine in the machine and the change amplitude can be achieved.
◎ Little damage to the surface of the material. It can be used for the dryness of fragile materials, and the work effect does not affect the work effect when the material particles are irregular.
◎ Use a fully closed structure. Effectively prevent cross -infection of materials and air, and the operating environment is clean.
◎ Machinery efficiency and thermal efficiency are high, and the energy saving effect is good. It can save energy by 30 to 60 % than ordinary drying devices.


Technical specification

Size/ modelABCDEFWeight (kg)
ZLG3×0.303000300135090043016501250
ZLG4.5×0.304500300135090043016501250
ZLG4.5×0.454500450155095043017001670
ZLG4.5×0.604500600165095043017001670
ZLG6×0.456000450165095043017002100
ZLG6×0.6060006001700100050017002410
ZLG6×0.7560007501850100060018502840
ZLG6×0.960009002000100060018503160
ZLG7.5×0.6075006001850100060018503200
ZLG7.5×0.7575007502000100060018503600
ZLG7.5×0.975009002100100060018504140
ZLG7.5×1.2750012002500115080020505190



modelFluidized bed area
(M²)
Air inlet temperature
(oC)
Air temperature
(oC)
Evaporate water ability
(kg)
Vibration motor
modelpower Kw
ZLG3×0.300.970-14040-7020-35ZDS31-60.8×2
ZLG4.5×0.301.3570-14040-7035-50ZDS31-60.8×2
ZLG4.5×0.452.02570-14040-7050-70ZDS32-61.1×2
ZLG4.5×0.602.770-14040-7070-90ZDS32-61.1×2
ZLG6×0.452.770-14040-7080-100ZDS41-61.5×2
ZLG6×0.603.670-14040-70100-130ZDS41-61.5×2
ZLG6×0.754.570-14040-70120-140ZDS42-62.2×2
ZLG6×0.95.470-14040-70140-170ZDS42-62.2×2
ZLG7.5×0.604.570-14040-70130-150ZDS42-62.2×2
ZLG7.5×0.755.62570-14040-70150-180ZDS51-63.0×2
ZLG7.5×0.96.7570-14040-70160-210ZDS51-63.0×2
ZLG7.5×1.2970-14040-70200-260ZDS51-63.0×2

★The above evaporation is the maximum evaporation amount.

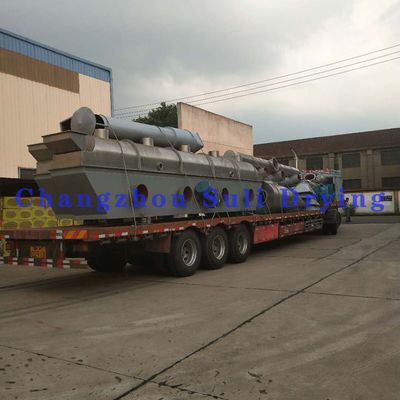

Stable Operation Wide Applicability And Energy Saving Fluidized Bed Dryer 0
