| MOQ: | 1 set |
| Price: | Negotiation |
| Standard Packaging: | According to customer requirements |
| Payment Method: | T/T |

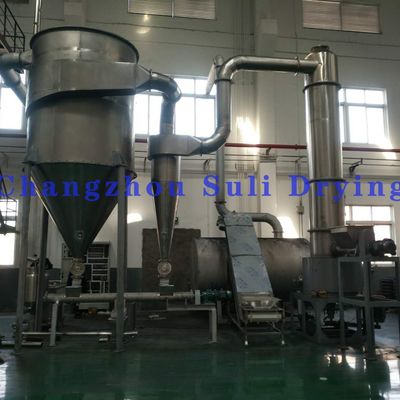

The hot air cut into the bottom of the dryer and form a powerful rotating wind farm under the mixer. The paste is entered into the dryer from the screw and the feeder. Under the strong effect of a high -speed rotation and mixing paddle, the material is dispersed under the action of impact, friction and shear force. ,dry. After dehydration, the dry material rises with the hot air flow, and the hierarchical ring will cut large particles. Small particles discharge from the dryer from the center of the ring. , Reinstall the bottom and be shattered and dry.,
◎ The organic combination of rotation, fluidization, spraying and crushing classification technology.
◎ The equipment is compact, small in size, high production efficiency, and continuous production, realizing "small equipment, large production".
◎ Drying strength, low energy consumption, and high thermal efficiency.
◎ The material stays is short, the quality of the finished product is good, and it can be used for the drying of thermal material.
◎ Negative pressure or micro -negative pressure operation, good closedness, high efficiency, eliminating environmental pollution.
Organic matter: Atlazin (pesticide insecticide), laurel acid partition, benzoic acid, scent acid, sterilization
Dan, sodium oxalate, acetate cellulose, organic pigment, etc.
Dyes: black iron oxide, blue pigment, buty acid, titanium hydroxide, zinc sulfide, and various puppet nitrogen dye intermediates.
Inorganic objects: borax, calcium carbonate, hydroxide, copper sulfate, iron oxide, carbonate, tritenuxide, various metal hydroxide, various heavy metal salts, synthetic ice spar, etc.
Food: Soy protein, gel starch, wine tank, wheat sugar, wheat starch, etc.
| model | XSG-2 | XSG-4 | XSG-6 | XSG-8 | XSG-10 | XSG-12 | XSG-16 | XSG-20 |
| Inner diameter mm | 200 | 400 | 600 | 800 | 1000 | 1200 | 1600 | 2000 |
| Air volume M3/h | 350-500 | 1150-2000 | 2450-4500 | 4450-7550 | 7000-12500 | 10000-20000 | 18000-36000 | 28200-56500 |
| Evaporate kg/h | 12-17 | 40-70 | 80-150 | 150-250 | 230-4250 | 300-600 | 600-1000 | 1000-1500 |
| Installation capacity kw | 10 | 20 | 40 | 65 | 85 | 105 | 150 | 230 |
| High m | 4.0 | 4.8 | 5.8 | 6.5 | 7.1 | 7.8 | 8.8 | 10.1 |
| Land m2 | 15 | 20 | 28 | 35 | 40 | 52 | 80 | 150 |
Note: 1. The amount of water evaporation is 180℃ in the air inlet, and the water evaporates every hour when the air temperature is 80℃.
2. Except for the above models, you can make special designs for users.
3. The above installation capacity is a standard support, which can be significantly reduced according to different power facilities.
|
|
