| MOQ: | 15 set |
| Price: | Negotiable |
| Standard Packaging: | According to customer requirements |
| Payment Method: | T/T |

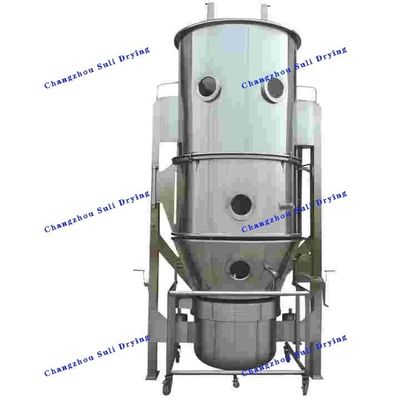

Boiling granulator:
The boiling dryer can improve fluidity and reduce dust flying through powder granulation; improve its solubility through powder granulation; complete one-step granulation by mixing, granulating and drying in one machine; use antistatic filter cloth, the equipment is safe to operate; set pressure relief holes, once an explosion occurs, the probability of injury to the equipment operator is small; the equipment has no dead angle, loading and unloading is light and fast, and flushing is clean, meeting GMP standards.
Working principle:
The boiling dryer uses air heated by a heat exchanger to form hot air distributed through the valve plate into the main machine, and the wet material enters the dryer from the feeder. Due to the effect of wind pressure, the material forms a boiling state in the dryer and is widely in contact with the hot air, so that the material is dried in a shorter time.
Note:
Granulation machinery and equipment should be regularly cleared and maintained, especially granulation ovens and boiling dryers should not be operated for more than 18 hours a day, otherwise there will be a risk of ethanol dust explosion for a long time. Some pharmaceutical companies need to work in three shifts.
It is recommended that each shift be controlled within 6 hours, and 1 hour of equipment should be reserved for rest during the handover. It is necessary to strengthen the management of employee safety operations, safeguard the vital interests of employees, and ensure the smooth progress of production work.
It is strictly forbidden to work after drinking, lack of sleep, trance, and other factors that affect work.
Application range: Granulation in the pharmaceutical industry: tablet granules, granules, capsule granules. Granulation in the food industry: cocoa, coffee, milk powder, granular juice, condiments, etc. Granulation in other industries: pesticides, feed, fertilizers, pigments, dye chemicals, etc. Drying of powdered or granular wet materials. Coating: granules, pill protective layer, color preparation, sustained release, film, enteric coating, etc.
Technical specification:
| Specification | 3 | 5 | 15 | 30 | 45 | 60 | 90 | 120 | 150 | 200 | 300 | 500 |
| capacity | 12 | 22 | 45 | 100 | 155 | 220 | 300 | 420 | 530 | 660 | 1000 | 1500 |
| Processing | 1.5/4.5 | 4/6 | 10/20 | 15/45 | 25/65 | 40/80 | 60/120 | 80/160 | 90/200 | 100/300 | 150/450 | 300/300 |
| Fan power | 2.2 | 3 | 4 | 5.5 | 7.5 | 11 | 15 | 18.5 | 18.5 | 22 | 30 | 37 |
| Steam consumption | 12 | 23 | 42 | 70 | 99 | 141 | 169 | 211 | 251 | 282 | 366 | 451 |
| Compressed air consumption | 0.3 | 1.3 | 0.3 | 0.4 | 0.4 | 0.6 | 0.6 | 0.9 | 0.9 | 0.9 | 1.3 | 1.5 |
| noise | (Fan isolation installation)≤75 | |||||||||||
| Dimensions | 1.0 ×0.55 ×1.8 |
1.2 ×0.6 ×2.1 |
1.25 ×0.9 ×2.1 |
1.6 ×0.9 ×2.3 |
1.65 ×1.1 ×2.4 |
1.85 ×1.25 ×3 |
1.85 ×1.25 ×3 |
2.2 ×1.65 ×3.1 |
2.27 ×1.72 ×3.1 |
2.34 ×1.9 ×3.5 |
2.8 ×1.9 ×3.8 |
3 ×2.55 ×4.2 |
Note: FG without granular parts
|
|
