| MOQ: | 1 set |
| Price: | Negotiation |
| Standard Packaging: | According to customer requirements |
| Payment Method: | T/T |

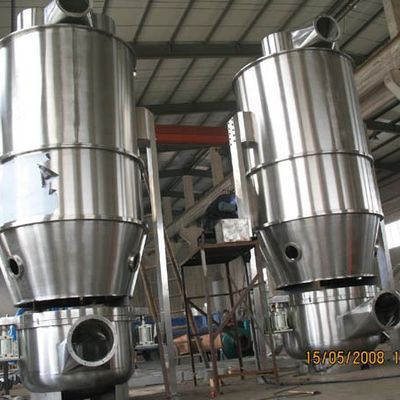

The principle of the FL and FG series vertical boiling granular dried machine is the powder particles of the material, which is a circular fluidization state in the raw material container (fluidized bed). The atomization is sprayed into a number of particles containing adhesives. Due to the continuous drying of the material on thermal air, the water in the group grains evaporates and the adhesive solidifies.
◎ Pharmaceutical granules and coats
Gels: crushing particles, granular particles, capsules.
Caunce: Granules, pills protective layers, color preparation, slow release, film, enteric coated.
◎ Food granules and coats
Grunting, coffee, cocoa powder, cream, powder juice, amino acids, seasonings, and puffed foods.
◎ Pesticide, pigment pigment, dye
◎ Through the granules of powder, improve liquidity, reduce dust flying;
◎ Make granulation through powder to improve its dissolving performance;
◎ Mixed -granulation -dryness -complete in one machine (one -step method of granular grains);
◎ Use anti -static filter materials, safe equipment operation;
◎ The adhesive atomizer uses a multi -current spray gun, the fog particles are uniform, and the qualification rate of the finished product is greatly improved;
◎ The equipment has no dead ends, and the loading and unloading materials are light and fast, and rinse.
| Specification | 3 | 5 | 15 | 30 | 45 | 60 | 90 | 120 | 150 | 200 | 300 | 500 |
| capacity | 12 | 22 | 45 | 100 | 155 | 220 | 300 | 420 | 530 | 660 | 1000 | 1500 |
| Processing | 1.5/4.5 | 4/6 | 10/20 | 15/45 | 25/65 | 40/80 | 60/120 | 80/160 | 90/200 | 100/300 | 150/450 | 300/300 |
| Fan power | 2.2 | 3 | 4 | 5.5 | 7.5 | 11 | 15 | 18.5 | 18.5 | 22 | 30 | 37 |
| Steam consumption | 12 | 23 | 42 | 70 | 99 | 141 | 169 | 211 | 251 | 282 | 366 | 451 |
| Compressed air consumption | 0.3 | 1.3 | 0.3 | 0.4 | 0.4 | 0.6 | 0.6 | 0.9 | 0.9 | 0.9 | 1.3 | 1.5 |
| noise | (Fan isolation installation)≤75 | |||||||||||
| Dimensions | 1.0 ×0.55 ×1.8 |
1.2 ×0.6 ×2.1 |
1.25 ×0.9 ×2.1 |
1.6 ×0.9 ×2.3 |
1.65 ×1.1 ×2.4 |
1.85 ×1.25 ×3 |
1.85 ×1.25 ×3 |
2.2 ×1.65 ×3.1 |
2.27 ×1.72 ×3.1 |
2.34 ×1.9 ×3.5 |
2.8 ×1.9 ×3.8 |
3 ×2.55 ×4.2 |
Note: FG without granular parts
|
|
