| MOQ: | 1set |
| Supply Capacity: | 220sets/Year |
Descriptiom

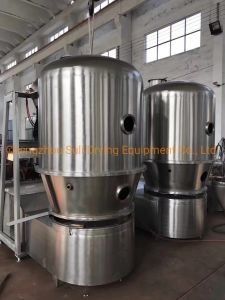

FLP Granulator/Coater/Pelleter is multi-function equipment integrated spray drying-granulating-centrifugal spray coating-fluid coating-drying in one body. The machine combines various process operations.Particularly it is suitable for granulating,pelleting and coating of various varieties in pharmaceutical industry,foodstuff industry and chemical industry.etc.
Fratures
1.Multi-function such as granulating,pelleting,coating in one machine.
2.Powder materical granulating.
3.Powder materical coating.
4.Powder materical pelleting.
5.Chinese medicine spray drying,granulating and coating.
6. Make 10-30 meshes big granule.
7.Film coating of Powder. granules and pellets,entericrelease.slow and control release coating.
8.Taste masking,order,moisture-proof,anti-oxidation,prevent water,heat insulation,coloration and seoaration coating.
9.Powder,granule,agglomerate material drying.
Technical parameters
| Item (FLP)Model/specifications | |||||||||||
| name | unit | 10 | 15 | 20 | 30 | 45 | 60 | 90 | 120 | ||
| dia of capacity | mm | 700 | 800 | 900 | 1000 | 1100 | 1200 | 1400 | 1500 | ||
| productive capacity | kg/batch | 2.5-10 | 3-15 | 5-20 | 7.5-30 | 10-45 | 15-60 | 20-90 | 30-120 | ||
| powder of fan | kw | 5.5 | 7.5 | 7.5 | 7.5 | 11 | 11 | 15 | 18.5 | ||
| steam compressed aor |
pressure consumption pressure consumption |
Mpa 0.4-0.6 | |||||||||
| kg/h | 35 | 42 | 47 | 60 | 140 | 160 | 180 | 240 | |||
| Mpa 0.6 | |||||||||||
| m3min | 0.6 | 0.6 | 0.6 | 0.9 | 0.9 | 1.1 | 1.3 | 1.5 | |||
| noise db No more than 75bt separated of fan | |||||||||||
| installation size for reference | H1(mm) | 2790 | 3350 | 3650 | 3720 | 3720 | 3850 | 3950 | 4190 | ||
| H1(mm) | 340 | 490 | 540 | 590 | 640 | 690 | 740 | 790 | |||
| H1(mm) | 2570 | 3130 | 3430 | 3500 | 3500 | 3630 | 3720 | 3975 | |||
| Φ1(mm) | 700 | 1000 | 1000 | 1200 | 1300 | 1400 | 150 | 1600 | |||
| Φ2(mm) | 250 | 250 | 250 | 280 | 280 | 280 | 280 | 315 | |||
| L(mm) | 1250 | 1400 | 1450 | 1500 | 1550 | 1600 | 1650 | 1700 | |||
| B1(mm) | 1160 | 1460 | 1560 | 1600 | 1760 | 1860 | 1960 | 2060 | |||
| B2(mm) | 1860 | 2460 | 2660 | 2860 | 3060 | 3260 | 3460 | 3660 |
|||
|
|
