220V/380V Operation PLG Model NO. Zinc Sulfate Monohydrate Continuous Dryer Equipment

220V/380V Operation PLG Model NO. Zinc Sulfate Monohydrate Continuous Dryer Equipment

MOQ: 1set
Supply Capacity: 200sets/Year
Detail Information
Brand Name
SULI
Operational Method:
Continuous
Dimension(L*W*H):
Varied
Trademark:
SU LI
Specification:
Deponds On The Model
Origin:
Jiangsu, China (Mainland)
Material:
SUS304/316L
Minimum Order Quantity:
1set
Supply Ability:
200sets/Year
Highlight:

220v continuous dryer

,

220v continuous conveyor dryer

,

380v continuous dryer

Product Description



Product Description

Su li dry professional production vacuum tray dryer machine
Continuous plate dryer working principle
The wet material is fed continuously to the first drying layer on the top of the dryer. It will be turned and stirred by rakes when the rake arm rotates and drop down to the outer edge of the large drying plate along the exponential helical line. The material will be moved from the small drying plate to its outer edge and drop down to the outer edge of the large drying plate underneath. Both small and large drying plates are arranged alternately so the materials can go through the dryer continuously. The heat medium can be saturated steam, hot water or thermal oil. The heat will be led into hollow drying plates from one end and come out from the other end. The dried materials will drop from the last layer of the drying plate to the bottom of the dryer and then moved by rakes to the discharge outlet. The material moisture will be removed from the exhaust outlet on the top cover. For the vacuum-type plate dryer, the moisture will be sucked out by the vacuum pump on the top cover. The dried materials will be discharged from the bottom layer. The drying capability can be improved if the dryer equipped with supplementary devices such as finned heater, condenser for solvent retrieval, bag dust remover, return and mix mechanism, draft fan, and etc.

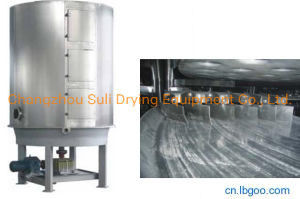

220V/380V Operation PLG Model NO. Zinc Sulfate Monohydrate Continuous Dryer Equipment 0
Disc plate dryer performance characteristics
(1) easy control and strong applicability:
The drying process is optimized by adjusting the thickness of the material layer, the spindle speed, the number of cymbals, the type and size of the blister leaf.
Each layer of drying plate can be heated or cooled by entering the heat medium or the cold medium separately. The temperature control of the material is accurate and easy.
The residence time of the material can be precisely adjusted.
The flow direction of the material is single and there is no back mixing phenomenon. The drying is uniform, the quality is stable, and no mixing is required.
(ii) easy operation and easy operation
Dryer driving and parking operations are very simple.
After the feed is stopped, the transport of the material scale leaves the material in the dryer quickly.
Through a special large inspection door mirror, the inside of the equipment can be carefully cleaned and observed.
(3) low energy consumption
The material layer is thin, the spindle speed is low, and the material transfer system requires less power and less power consumption.
Drying with conductive heat, high thermal efficiency, low energy consumption.
(4) the operating environment is good, the solvent can be recovered, and the dust emission meets the requirements.
Normal pressure type: Due to the low air velocity in the equipment and the high and low humidity distribution inside the equipment, it is difficult for dust to float to the top of the equipment, so the top moisture outlet the exhaust gas contains almost no dust.
Closed type: Equipped with a solvent recovery device, it can conveniently recover the organic solvent contained in the carrier gas. The solvent recovery device is simple and the recovery rate is high. For materials that are flammable, explosive, toxic, and easily oxidized, nitrogen can be used as a carrier gas to carry out closed-circuit circulation for safe operation. Especially suitable for drying flammable, explosive and toxic materials.
Vacuum type: The disc dryer operates under vacuum, especially suitable for the drying of heat-sensitive materials.
(5) easy installation and small floor space
The entire dryer is shipped and the entire transport is completed. It is only necessary to lift the dryer in place and the installation and positioning are very easy.
Due to the dry disk layout and vertical installation, even the dry area is large and the floor space is small.

Continual plate dryer technical characteristics
(a) drying plate
Design pressure: Generally 0.4mpa, up to 1.6mpa.
Maximum use pressure: Generally ≤ 0.4mpa, up to 1.6mpa.
Heating medium: Steam, hot water, heat transfer oil, hot water heating at 100°c, 100°c to 150°c, saturated steam or superheated steam at ≤0.4mpa, and heat transfer oil at 150°c to 320°c. Heating, >320 °c can be used when electricity, thermal oil, molten salt and other heating methods.
(b) material transfer system
Spindle speed: 1 to 10 minutes, electromagnetic or frequency conversion stepless speed regulation.
Arm: There are 2 to 8 arm arms fixed to the main shaft on each drying plate.
Leaves: Spliced on the arm, can keep in contact with the surface floating, there are many forms.
Rolling and rolling: For the materials that are easy to agglomerate and need to be crushed, adding a roll in place can strengthen the heat transfer and drying process.
(c) the shell has three types of normal pressure, airtight, and vacuum.
Atmospheric pressure type: Cylindrical or octagonal prism type, there are two types of integral and split structure. The heating medium inlet and outlet main ducts may be inside or outside the housing.
Closed type: Cylindrical shell, can withstand 5kpa internal pressure, heating medium inlet and outlet main pipeline can be in the shell, but also outside the shell.
Vacuum type: Cylindrical shell, design pressure is 0.1mpa, heating medium inlet and outlet main pipelines are in the shell.
(d) air heaters
Are generally used with large evaporation to enhance drying efficiency.

Adaptation materials
Dry pyrolysis combustion cooling reaction sublimation
Organic chemical products, inorganic chemical products, medicine, food, feed, fertilizer


Type Diameter(mm) high(mm) area of dry(m3) Power
(Kw)
1200/4 1850 2608 3.3 1.1
1200/6 3028 4.9
1200/8 3448 6.6 1.5
1200/10 3868 8.2
1200/12 4288 9.9
1500/6 2100 3022 8.0 2.2


3.0
1500/8 3442 10.7
1500/10 3862 13.4
1500/12 4282 16.1
1500/14 4702 18.8
1500/16 5122 21.5
2200/6 2900 3262 18.5 3.0
2200/8 3682 24.6
2200/10 4102 30.8
2200/12 4522 36.9 4.0
2200/14 4942 43.1
2200/16 5362 49.3 5.5
2200/18 5782 55.4
2200/20 6202 61.6
2200/22 6622 67.7 7.5
2200/24 7042 73.9
2200/26 7462 80.0
3000/8 3800 4050 48 11
3000/10 4650 60
3000/12 5250 72
3000/14 5850 84
3000/16 6450 96
3000/18 7050 108
3000/20 7650 120 13
3000/22 8250 132
3000/24 8850 144 15
3000/26 9450 156
3000/28 10050 168
3000/30 10650 180
