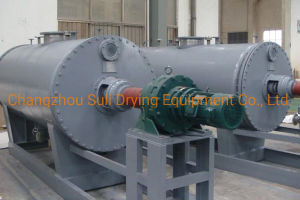

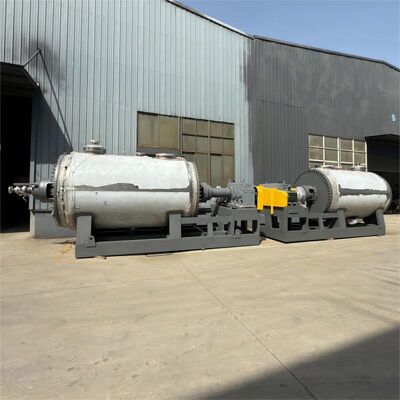

Sulfonic Acid Silicate Dryer Industrial Jacket 0.3MPa Vacuum Dryer

Sulfonic Acid Silicate Dryer Industrial Jacket 0.3MPa Vacuum Dryer

MOQ: 1set
Supply Capacity: 280sets/Year
Detail Information
Brand Name
SULI
Model Number
ZPG
Type:
Vacuum Rake
Pressure In The Cylinder(MPa):
-0.09 ~ -0.096
Trademark:
SU LI
Specification:
Deponds On The Model
Origin:
Jiangsu, China (Mainland)
Material:
SUS304/316L
Minimum Order Quantity:
1set
Supply Ability:
280sets/Year
High Light:

0.3mpa vacuum dryer

,

sulfonic acid silicate dryer industrial

,

0.3mpa dryer industrial

Product Description

Design Pressure of Jacket MPa 0.3 Sulfonic Acid Silicate Dryer Machine from Jiang Su

Product Description

Working principle
This machine is a novel horizontal intermittent type vacuum drying equipment. The wet material is conductively evaporated. The scraper stirrer continuously removes the material on the hot surface and forms a circulating flow in the container. After the water evaporates, Vacuum pump out.
Performance characteristics
This machine uses a large area of sandwich heating, heat transfer surface, high thermal efficiency.
The machine is set to stir, so that the material in the cylinder to form a continuous cycle of state, to further improve the uniformity of the material heated.
The machine is set to stir, so that the slurry, paste, paste material can be dried smoothly.
Adaptable materials
Pharmaceuticals, food, chemical and other industries conduct the following materials drying:
Suitable for paste, paste, powder materials;
Heat-sensitive materials that require low temperature drying;
Easily oxidized, explosive, strong stimulation, highly toxic materials;
Material recovery requires an organic solvent.
Schematic
Sulfonic Acid Silicate Dryer Industrial Jacket 0.3MPa Vacuum Dryer 0
Technical specifications
Project Model
Name Unit ZPG-500 ZPG-750 ZPG-1000 ZPG-1500 ZPG-2000 ZPG-3000
Working volume L 300 450 600 900 1200 1800
Heating area M 2 6 7.6 9.3 12.3 14.6 19.3
Stirring speed Rpm 6-30 stepless speed regulation
Power Kw 4 5.5 5.5 7.5 11 15
Sandwich design pressure (hot water) MPa ≤ 0.3
Vacuum inside the cylinder MPa -0.09 to 0.096
 Note: The amount of water evaporation is related to the characteristics of the material and the hot air inlet and outlet temperatures. When the outlet temperature is 90 o C, the water evaporation curve is shown in the above figure (for selection reference). As the product is continuously updated, the relevant parameters are changed without prior notice.
Company Profile

CHANGZHOU SULI DRYING EQUIPMENT CO.,LTD.is an innovative drying industry enterprises,the state drying equipment,pharmaceutical machinery,chemical and food machinery industry professional production companies.The company has always adhere to the"dedication,inovation,"the purpose of the work,continue to strengthen the development of innocative technological content of products and product currently has a drying,granulation,mixing,crushing nearly a hundred varieties of products.Widely used in pharmaceutial,chemical,food,enzymes,buildingmaterials,electronics,feed,agricultural processing and many other industries,has won the majority of users.

Since its establishment,holding"technology to upgrade the industry,quality and create value"business philosophy,brought together and trained a team of experienced produciton and technical services team,to continuously improve the product,updating and development to ensure that the advanced,high-quality products and good service to customers.
The company of"integrity,timely and thoughful"purpose of business services,through continuous efforts of all employees,will create greater value for you and return!
SuLi company with a variety of sample prototype,welcome friends to visit our small test!
