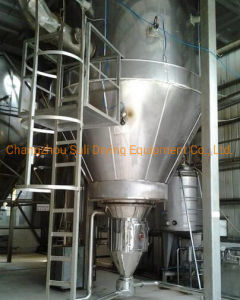

Fish Scale Protein Spray Dryer Machine Centrifugal Dryer Industrial

Fish Scale Protein Spray Dryer Machine Centrifugal Dryer Industrial

MOQ: 1set
Supply Capacity: 220sets/Year
Detail Information
Brand Name
SULI
Material Status:
Liquid
Type:
Centrifugal Spray
Trademark:
SULI
Specification:
Deponds On The Model
Origin:
Jiangsu, China (Mainland)
Material:
SUS304/316L
Minimum Order Quantity:
1set
Supply Ability:
220sets/Year
Highlight:

centrifugal dryer industrial

,

spray dryer machine centrifugal

,

fish scale protein spray dryer machine

Product Description

Fish Scale Protein Spray Dryer Machine for Versatile Applications

Product Description

LPG High Speed Centrifugal Spray Dryer Product Introduction
LPG high-speed centrifugal spray dryer is a kind of dedicated equipment for drying suspension, emulsion, paste and solution. This spray drying machine is particularly prominent in drying resins, polymers, dyes, pigments,  glass, rust remover, ceramics, pesticides, carbohydrate, detergents, fertilizer, dairy products, organic compounds and inorganic compound liquids.

Fishmeal spray dryer machine Working principle
Air is filtered and heated into the air distributor at the top of the dryer. The hot air spirally enters the drying chamber. The feed solution is passed through the high-speed centrifugal atomizer at the top of the tower body, and (rotated) is sprayed into very fine mist-like liquid beads, which can be dried in a short time in the cocurrent contact with hot air. The finished product is continuously output from the bottom of the drying tower and the cyclone separator, and the exhaust gas is exhausted by the fan.
Fish Scale Protein Spray Dryer Machine Centrifugal Dryer Industrial 0
Fishmeal spray dryer equipment Performance characteristics
Drying speed is fast, the surface area of material liquid is greatly increased after atomization. In the hot air current, 95%-98% of water can be evaporated instantaneously, and the drying time is only a few seconds. It is especially suitable for the drying of heat-sensitive materials.
  The product has good uniformity, fluidity and solubility, and the product has high purity and good quality.
  The production process is simplified and the operation and control are convenient. For liquids with a moisture content of 40-60% (up to 90% for special materials), the liquid can be dried once into a powdered product, without crushing and screening after drying, which reduces production processes and improves product purity. The product particle size, bulk density and moisture content can be adjusted within a certain range by changing the operating conditions, and the control and management are very convenient.

Fishmeal spray drying equipment Adaptable materials
 Chemical industry: Sodium fluoride (potassium), basic dye pigments, dye intermediates, compound fertilizers, formaldehyde silicic acid, catalysts, sulfuric acid agents, amino acids, white carbon, etc.
 Plastic resin: AB, ABS emulsion, urea-formaldehyde resin, phenolic resin, adhesive (urea) formaldehyde resin, polyethylene, polyvinyl chloride and so on.
 Food Industry: Fat-enriched milk powder, Taro, cocoa powder, milk replacer, blood powder, egg white (yellow), etc.
 Food and plants: oats, chicken juice, coffee, instant tea, spices, protein, soybeans, peanut protein, hydrolysates, etc.
 Sugars: Corn syrup, corn starch, glucose, pectin, maltose, potassium sorbate, etc.
 Ceramics: Alumina, tile materials, magnesium oxide, talcum powder, etc.


Ordering Information
  material liquid name, physical properties: solid content (or water content), viscosity, surface tension, PH value.
  Powder capacity after drying, allowable residual water content, particle size, maximum allowable temperature.
  Production, daily opening hours.
  Available energy: steam pressure available, capacity, available for coal, oil, gas.
  Control requirements: whether the inlet and outlet temperatures need to be controlled.
 Powder collection requirements: Whether or not to install a bag trap, the environment requires exhaust emissions.
  other special requirements.

 Technical specifications
Model / Item / Parameter 5 25 50 150 200-2000
Inlet temperature 140-350 Automatic Control
output temperature 80-90
Maximum moisture evaporation (kg/h) 5 25 50 150 200-2000
Centrifugal spray head drive form Compressed air drive Mechanical transmission
Maximum speed (rpm) 25000 18000 18000 15000 8000-15000
Spray disk diameter (mm) 50 120 120 150 180-240
Heat source Electricity Steam + electricity Steam + Electric, Fuel, Gas, Hot Air Furnace
Electric heating maximum power (kw) 9 36 72 99
Dimensions (length × width × height) (m) 1.8×0.93×2.2 3×2.7×4.26 3.5×3.5×4.8 5.5×4×7 According to the actual situation
Dry powder recovery (%) ≥95
Note: The amount of water evaporation is related to the characteristics of the material and the hot air inlet and outlet temperatures. When the outlet temperature is 90 o C, the water evaporation curve is shown in the above figure (for selection reference). As the product is continuously updated, the relevant parameters are changed without prior notice.
   Technical specifications
size A B C D E1 E2 F G H I
LPG-25 1290 3410 4260 1800 1200 1200 1,000 1700 1300 1550
LPG-50 1730 4245 5100 2133 1640 1640 1250 1750 1800 1600
LPG-100 2500 5300 6000 2560 2100 2100 1750 1930 2600 1780
LPG-150 2800 6000 7000 2860 2180 2180 1970 2080 3050 1960
LPG-200 2800 6600 7300 3200 2300 2300 2210 2250 3050 2100
LPG-300 2800 8000 8700 3700 2800 2800 2520 2400 3040 2250
