| MOQ: | 1set |
| Supply Capacity: | 200sets/Year |

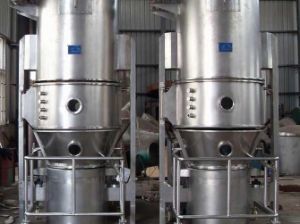

The powder granule in vessel (fluid bed) appears in the state of fluidization. Itis preheated and mixed with clean and heated air. At the same time the solution
of adhesive is sprayed into the container. It makes the particles become granulatingthat contains adhesive. Being of unceasing dry through hot air, the moisturein the granulating is evaporated. The process is carried out continuously. Finally it forms ideal, uniform and porous granules.
fluidized bed is a round structure to avoid dead ends.
Stirring is set in the hopper to prevent the formation of channel flow when the wet material is agglomerated and dried.
Using tipping and unloading, it is convenient, rapid and thorough, and it can also design automatic feeding and discharging system according to requirements.
Sealed negative pressure operation, air flow filtered. Easy to operate, easy to clean.
Drying speed, temperature uniformity, each batch of drying time is generally 20-30 minutes, depending on the material.
mechanism screw extrusion particles, rocking particles, wet high-speed mixing granulation particles.
Drying of wet granules and powdered materials in the fields of medicine, food, feed, and chemical industry.
large particles, small pieces, sticky block granular materials.
Konjac and other materials that change in volume when dried.
| Item | Unit | Type | ||||||||||||
| 3 | 5 | 15 | 30 | 60 | 120 | 200 | 300 | 500 | ||||||
| Container | Volume | L | 12 | 22 | 45 | 100 | 220 | 420 | 670 | 1000 | 1500 | |||
| Diameter | mm | 300 | 400 | 550 | 700 | 1000 | 1200 | 1400 | 1600 | 1800 | ||||
| Capability | Min | Kg | 1.5 | 4 | 10 | 15 | 30 | 80 | 100 | 150 | 250 | |||
| Max | Kg | 4.5 | 6 | 20 | 45 | 90 | 160 | 300 | 450 | 750 | ||||
| Fan | Capacity | m3/h | 1000 | 1200 | 1400 | 1800 | 3000 | 4500 | 6000 | 7000 | 8000 | |||
| Pressure | mmH2O | 375 | 375 | 480 | 480 | 950 | 950 | 950 | 950 | 950 | ||||
| Power | KW | 3 | 4 | 5.5 | 7.5 | 11 | 18.5 | 22 | 30 | 45 | ||||
| Steam expenditure | Kg/h | 9 | 12 | 42 | 70 | 141 | 180 | 282 | 366 | 451 | ||||
| Compressed air expenditure | m3/min | 0.3 | 0.35 | 0.6 | 0.6 | 0.9 | 0.9 | 1.1 | 2.0 | 2.4 | ||||
| Weight of the main body | Kg | 500 | 700 | 900 | 1000 | 1100 | 1300 | 1500 | 1800 | 2000 | ||||
| Steam pressure | Mpa | 0.3~0.6 | ||||||||||||
| Temperature | oC | adjustable at the range from room temperature to 120oC | ||||||||||||
| Working time | min | decided in accordance with the proplerites of raw materials | ||||||||||||
| Field | o/o | ≥99 | ||||||||||||
| Noise | DB(A) | ≤75dB(When installation,min machine is separated frpm fan) | ||||||||||||
| Size(L*W*H) | M | 1.0X0.6X2.1 | 1.2X0.7X2.1 | 1.25X0.9X2.5 | 1.6X1.1X2.5 | 1.85X1.4X3 | 2.2X1.65X3.3 | 2.34X1.7X3.8 | 2.8X2.0X4.0 | 3X2.25X4.4 | ||||
CHANGZHOU SULI DRYING EQUIPMENT CO.,LTD.is an innovative drying industry enterprises,the state drying equipment,pharmaceutical machinery,chemical and food machinery industry professional production companies.The company has always adhere to the"dedication,inovation,"the purpose of the work,continue to strengthen the development of innocative technological content of products and product currently has a drying,granulation,mixing,crushing nearly a hundred varieties of products.Widely used in pharmaceutial,chemical,food,enzymes,buildingmaterials,electronics,feed,agricultural processing and many other industries,has won the majority of users.
Since its establishment,holding"technology to upgrade the industry,quality and create value"business philosophy,brought together and trained a team of experienced produciton and technical services team,to continuously improve the product,updating and development to ensure that the advanced,high-quality products and good service to customers.
The company of"integrity,timely and thoughful"purpose of business services,through continuous efforts of all employees,will create greater value for you and return!
SuLi company with a variety of sample prototype,welcome friends to visit our small test!
|
|
