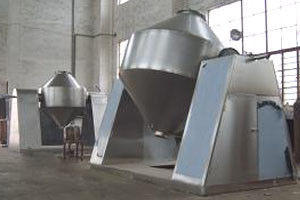

10000L Conical Vacuum Dryer Machine With Combined Movement

10000L Conical Vacuum Dryer Machine With Combined Movement

MOQ: 1set
Supply Capacity: 300sets/Year
Detail Information
Brand Name
SULI
Heating Mode:
Transmission
Material Status:
Powder, Solution
Heating Source:
Steam Or Hot Water Or Conductive Oil
Operation Pressure:
Vacuum
Operational Method:
Intermittent
Trademark:
SULI
Specification:
Deponds On The Model
Origin:
Jiangsu, China (Mainland)
Minimum Order Quantity:
1set
Supply Ability:
300sets/Year
High Light:

10000l conical vacuum dryer

,

10000l vacuum dryer machine

,

combined movement conical vacuum dryer

Product Description

Conical Vacuum Dryer with Combined Movement Way and 50-10000 L Max Loading Volume

Product Description

Product Description

Double-cone rotary vacuum dryer is the newest dryer which combines mixing and drying functions. By matching the condenser, vacuum pump and dryer, a vacuum dryer unit is formed. (if there is no solvent recovery, condenser can be removed). This dryer is of develop design, simple inner structure and easy of cleaning, complete discharging of materials and easy of operation. It can reduce the labor strength and improve the workplace conditions. Meanwhile, because of the rotary motion, there is no accumulation of materials on the wall, so the heat transfer coefficient is high and drying rate is large, which can save the energy and make the materials drying evenly and of good quality.


It is widely used in the material drying in pharmacy, chemical, food, dye, etc. And meet the requirement of [GMP".

Adaptable materials

For the chemical, pharmaceutical, food and other industries of powder, granular and fiber concentration, mixing, drying and low-temperature drying materials (such as biochemical products, etc. ). It is more suitable for the drying of materials that are easy to oxidize, volatile, heat-sensitive, intensely stimulating, toxic materials and materials that are not allowed to destroy crystals.


Performence characteristics

1 oil heating. Using automatic temperature control. Can be dried biochemical products

2 and mineral raw materials, the temperature can be between 20 ~ 160 o C.
3 High thermal efficiency, more than 2 times higher than normal oven.
4 Indirect heating. The material will not be contaminated and meet the "GMP" requirements. Equipment maintenance is simple and easy to clean.
5 Recommended process placement demonstration solvent recovery process placement.
Schematic
10000L Conical Vacuum Dryer Machine With Combined Movement 0
Product Parameters



Name/Specifications 100 350 500 750 1, 000
Tank volume 100 350 500 750 1, 000
Loading capacity (L) ≤50 ≤175 ≤250 ≤375 ≤500
Heating area (m2) 1.16 2 2.63 3.5 4.61
Speed (rpm) 4 - 6
Motor power (kw) 0.75 1.1 1.5 2 3
Coverage length × width (mm) 2160×800 2260×800 2350×800 2560×1000 2860×1300
Rotary height (mm) 1750 2100 2250 2490 2800
Tank design pressure (MPa) -0.1-0.15
Jacket design pressure (MPa) ≤ 0.3
Operating temperature ( o C) Tank ≤85 Jacket ≤140
When using a condenser, a vacuum pump,  2X-15A 2X-15A 2X-30A 2X-30A 2X-70A
Model, power 2KW 2KW 3KW 3KW 505KW
When not using a condenser, vacuum pump,  SK-0.4 SK-0.8 SK-0.8 SK-2.7B SK-2.7B
Model, power 1.5KW 2.2KW 2.2KW 4KW 4KW
Weight (kg) 800 1100 1200 1500 2800
Name/Specifications 1500 2000 3500 4500 5000
Tank volume 1500 2000 3500 4500 5000
Loading capacity (L) ≤750 ≤1000 ≤1750 ≤2250 ≤2500
Heating area (m2) 5.58 7.5 11.2 13.1 14.1
Speed (rpm) 4 - 6
Motor power (kw) 3 4 5.5 7.5 11
Coverage length × width (mm) 3060×1300 3260×1400 3760×1800 3960×2000 4400×2500
Rotary height (mm) 2940 2990 3490 4100 4200
Tank design pressure (MPa) -0.1-0.15
Jacket design pressure (MPa) ≤ 0.3
Operating temperature ( o C) -0.1-0.15
When using a condenser, a vacuum pump,  JZJX300-8 JZJX300-4 JZJX600-8 JZJX600-4 JZJX300-4
Model, power 7KW 9.5KW 11KW 20.5KW 22KW
When not using a condenser, vacuum pump,  SK-3 SK-6 SK-6 SK-9 SK-10
Model, power 5.5KW 11KW 11KW 15KW 18.5KW
Weight (kg) 3300 3600 6400 7500 8600
 Note: For materials with large volume changes before and after drying, the loading factor can be increased or decreased appropriately.
