Product Overview

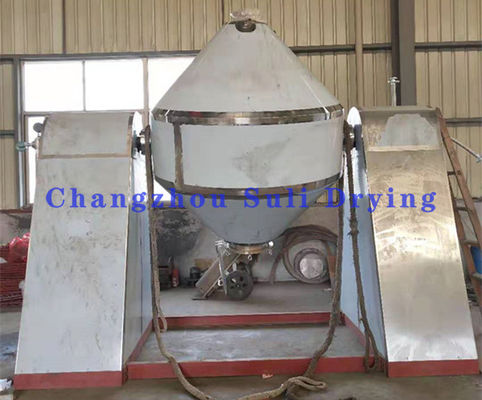

Double-cone rotary vacuum dryer is the newest dryer which combines mixing and drying functions. By matching the condenser, vacuum pump and dryer, a vacuum dryer unit is formed. (if there is no solvent recovery, condenser can be removed). This dryer is of develop design, simple inner structure and easy of cleaning, complete discharging of materials and easy of operation. It can reduce the labor strength and improve the workplace conditions. Meanwhile, because of the rotary motion, there is no accumulation of materials on the wall, so the heat transfer coefficient is high and drying rate is large, which can save the energy and make the materials drying evenly and of good quality.Suitable materials
For the chemical, pharmaceutical, food and other industries of powder, granular and fiber concentration, mixing, drying and low-temperature drying materials (such as biochemical products, etc. ). It is more suitable for the drying of materials that are easy to oxidize, volatile, heat-sensitive, intensely stimulating, toxic materials and materials that are not allowed to destroy crystals.Installation demonstration
Performance characteristics
1 oil heating. Using automatic temperature control. Can be dried biochemical products
2 and mineral raw materials, the temperature can be between 20 ~ 160 o C.
3 High thermal efficiency, more than 2 times higher than normal oven.
4 Indirect heating. The material will not be contaminated and meet the "GMP" requirements. Equipment maintenance is simple and easy to clean.
5 Recommended process placement demonstration solvent recovery process placement.
Schematic
Technical specifications
Name/Specifications | 100 | 350 | 500 | 750 | 1, 000 |
Tank volume | 100 | 350 | 500 | 750 | 1, 000 |
Loading capacity (L) | ≤50 | ≤175 | ≤250 | ≤375 | ≤500 |
Heating area (m2) | 1.16 | 2 | 2.63 | 3.5 | 4.61 |
Speed (rpm) | 4 - 6 | ||||
Motor power (kw) | 0.75 | 1.1 | 1.5 | 2 | 3 |
Coverage length × width (mm) | 2160×800 | 2260×800 | 2350×800 | 2560×1000 | 2860×1300 |
Rotary height (mm) | 1750 | 2100 | 2250 | 2490 | 2800 |
Tank design pressure (MPa) | -0.1-0.15 | ||||
Jacket design pressure (MPa) | ≤ 0.3 | ||||
Operating temperature ( o C) | Tank ≤85 Jacket ≤140 | ||||
When using a condenser, a vacuum pump, | 2X-15A | 2X-15A | 2X-30A | 2X-30A | 2X-70A |
Model, power | 2KW | 2KW | 3KW | 3KW | 505KW |
When not using a condenser, vacuum pump, | SK-0.4 | SK-0.8 | SK-0.8 | SK-2.7B | SK-2.7B |
Model, power | 1.5KW | 2.2KW | 2.2KW | 4KW | 4KW |
Weight (kg) | 800 | 1100 | 1200 | 1500 | 2800 |
Name/Specifications | 1500 | 2000 | 3500 | 4500 | 5000 |
Tank volume | 1500 | 2000 | 3500 | 4500 | 5000 |
Loading capacity (L) | ≤750 | ≤1000 | ≤1750 | ≤2250 | ≤2500 |
Heating area (m2) | 5.58 | 7.5 | 11.2 | 13.1 | 14.1 |
Speed (rpm) | 4 - 6 | ||||
Motor power (kw) | 3 | 4 | 5.5 | 7.5 | 11 |
Coverage length × width (mm) | 3060×1300 | 3260×1400 | 3760×1800 | 3960×2000 | 4400×2500 |
Rotary height (mm) | 2940 | 2990 | 3490 | 4100 | 4200 |
Tank design pressure (MPa) | -0.1-0.15 | ||||
Jacket design pressure (MPa) | ≤ 0.3 | ||||
Operating temperature ( o C) | -0.1-0.15 | ||||
When using a condenser, a vacuum pump, | JZJX300-8 | JZJX300-4 | JZJX600-8 | JZJX600-4 | JZJX300-4 |
Model, power | 7KW | 9.5KW | 11KW | 20.5KW | 22KW |
When not using a condenser, vacuum pump, | SK-3 | SK-6 | SK-6 | SK-9 | SK-10 |
Model, power | 5.5KW | 11KW | 11KW | 15KW | 18.5KW |
Weight (kg) | 3300 | 3600 | 6400 | 7500 | 8600 |
