| MOQ: | 20set |
| Price: | Negotiation |
| Standard Packaging: | According to customer requirements |
| Payment Method: | T/T |

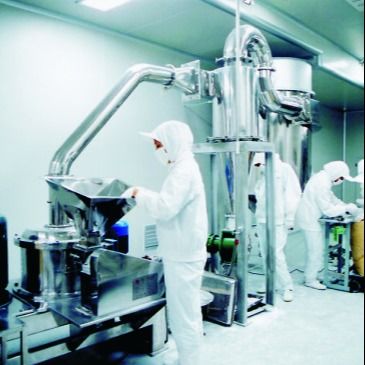

This machine consists of three parts: the main machine, the auxiliary machine, and the electric control box. It has multiple properties such as air selection type, no screen, and uniform particle size. The production process is continuous. It is suitable for crushing brittle materials in pharmaceutical, chemical, food and other industries.
| model | unit | WFJ-15 | WFJ-18 | WFJ-32 |
| production capacity | kg/h | 10-200 | 20-450 | 60-800 |
| Feed particle size | mm | ＜10 | ＜10 | ＜15 |
| Discharge particle size | mesh | 80-320 | 80-450 | 80-450 |
| total power | kw | 13.5 | 17.5 | 46 |
| main speed | r/min | 3800-6000 | 3800-6000 | 3800-4000 |
| Overall dimensions | mm | 4200×1200×2700 | 4700×1200×2900 | 9000×1500×3800 |
| weight | kg | 850 | 980 | 1500 |
|
|
| MOQ: | 20set |
| Price: | Negotiation |
| Standard Packaging: | According to customer requirements |
| Payment Method: | T/T |
This machine consists of three parts: the main machine, the auxiliary machine, and the electric control box. It has multiple properties such as air selection type, no screen, and uniform particle size. The production process is continuous. It is suitable for crushing brittle materials in pharmaceutical, chemical, food and other industries.
| model | unit | WFJ-15 | WFJ-18 | WFJ-32 |
| production capacity | kg/h | 10-200 | 20-450 | 60-800 |
| Feed particle size | mm | ＜10 | ＜10 | ＜15 |
| Discharge particle size | mesh | 80-320 | 80-450 | 80-450 |
| total power | kw | 13.5 | 17.5 | 46 |
| main speed | r/min | 3800-6000 | 3800-6000 | 3800-4000 |
| Overall dimensions | mm | 4200×1200×2700 | 4700×1200×2900 | 9000×1500×3800 |
| weight | kg | 850 | 980 | 1500 |
