Customizable Vacuum Rake Drying Machine For Maltodextrin Production

MOQ:	10 set
Price:	Negotiation
Standard Packaging:	According to customer requirements
Payment Method:	L/C, T/T

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

SULI

Certification

ISO9001

Model Number

ZPG

Model NO.:

ZPG

Specification:

Deponds On The Model

Material:

SUS304 Or 316L Orcarbon Steel

Control System:

PLC

Minimum Order Quantity:

10 set

Price:

Negotiation

Packaging Details:

According to customer requirements

Payment Terms:

L/C, T/T

Highlight:

Customizable Vacuum Rake Drying Machine

Rake Vacuum Drying Equipment

Maltodextrin Production Vacuum Rake Drying Machine

Product Description

What is Maltodextrin

Maltodextrin (MD) is a polysaccharide food raw material and a low-conversion product between starch and starch sugar. It is a white or slightly yellowish amorphous powder with no visible impurities, a special smell, and a non-sweet or slightly sweet taste.

Working principle

This machine is a novel horizontal intermittent type vacuum drying equipment. The wet material is conductively evaporated. The scraper stirrer continuously removes the material on the hot surface and forms a circulating flow in the container. After the water evaporates, Vacuum pump out.
Performance characteristics
This machine uses a large area of sandwich heating, heat transfer surface, high thermal efficiency.
The machine is set to stir, so that the material in the cylinder to form a continuous cycle of state, to further improve the uniformity of the material heated.
The machine is set to stir, so that the slurry, paste, paste material can be dried smoothly.
Adaptable materials
Pharmaceuticals, food, chemical and other industries conduct the following materials drying:
Suitable for paste, paste, powder materials;
Heat-sensitive materials that require low temperature drying;
Easily oxidized, explosive, strong stimulation, highly toxic materials;
Material recovery requires an organic solvent.
Schematic

Technical specifications

Project	Model
Name	Unit	ZPG-500	ZPG-750	ZPG-1000	ZPG-1500	ZPG-2000	ZPG-3000
Working volume	L	300	450	600	900	1200	1800
Heating area	M 2	6	7.6	9.3	12.3	14.6	19.3
Stirring speed	Rpm	6-30 stepless speed regulation
Power	Kw	4	5.5	5.5	7.5	11	15
Sandwich design pressure (hot water)	MPa	≤ 0.3
Vacuum inside the cylinder	MPa	-0.09 to 0.096

Note: The amount of water evaporation is related to the characteristics of the material and the hot air inlet and outlet temperatures. When the outlet temperature is 90 o C, the water evaporation curve is shown in the above figure (for selection reference). As the product is continuously updated, the relevant parameters are changed without prior notice.

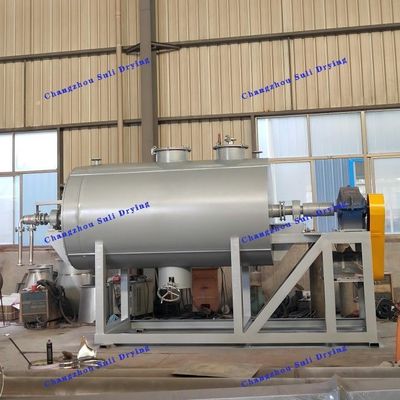

Rake dryer pictures

Customizable Vacuum Rake Drying Machine For Maltodextrin Production 1

Customizable Vacuum Rake Drying Machine For Maltodextrin Production 2
