HG Series Drum Scraper Drying Machine for Wide Applicability

HG Series Drum Scraper Drying Machine for Wide Applicability

MOQ: 1 set
Price: Negotiation
Standard Packaging: According to customer requirements
Payment Method: T/T
Detail Information
Place of Origin
China
Brand Name
SULI
Certification
ISO9001
Model Number
HG
Material:
SUS304 Or SUS316L
Control System:
PLC+HMI
Product Name:
Drum Scraper Dryer
Minimum Order Quantity:
1 set
Price:
Negotiation
Packaging Details:
According to customer requirements
Payment Terms:
T/T
Product Description

HG series (single drum · double drum) turning drum drum drum scraper dryer:

working principle:

The drum scraper dryer is a continuous drying equipment in the internal heating and conduction. The rotating drums are adhered to a thick material membrane through the lower part of the groove, and the heat is transmitted to the inner wall of the drum through the pipeline, transmitted to the outer wall of the drum, and then transmitted to the material membrane. Materials with wet scores are dry. The dry material is shovel away from the scraper on the surface of the roller, and it comes from the spiral conveyor placed below the scraper. The dry material is concentrated and packaged through the spiral conveyor.



Performance characteristics:

◎ High thermal efficiency. Due to the heat transmission of the dried dried machine of the drum scraper, the heat transfer direction is consistent in the entire operating cycle. Except for the loss of heat dissipation and thermal radiation, the remaining heat is all used in the evaporation of the dampness of the tube membrane. 70%-80%.
◎ Highly operating elasticity and wide applicability. There are many drying factors of the drum dryer. Such as the concentration of feeding, the thickness of the coating film, the temperature of the heating medium, and the rotation speed of the drum can change the drying efficiency of the drum scraper dryer, and many factors are not involved. This brings great convenience to the drying operation of the drum scraper, so that it can meet the requirements of dryness and different outputs.
◎ Short drying time. The drying cycle of the material is generally only 10-300 seconds, which is suitable for thermal material. If the drum scraper dryer is set in a vacuum, it can be run under decompression conditions.
◎ Great drying rate. Because the coating membrane is very thin in the tube wall, it is generally 0.3-1.5mm, and the heat transmission and mass transmission direction is the same. The surface of the material membrane can maintain the evaporation of 20-70kg.h2O/m².h.



Install:

The installation of this machine is installed according to the general diagram, and the ground should be flat. The pressure gauge and safety valve should be installed at the import of the steam pipe.



Adapting material:

◎ It is suitable for the drying of liquid or more sticky materials in chemical, dyes, pharmaceuticals, food, metallurgy and other industries.



Maintain:

◎ Regularly check the flexibility of rotating the rotating parts and whether there is a stuck. Pitch and other components should be regularly added with lubrication, and regularly correct metering devices such as the pressure gauge. The severe wear of the triangle with transmission parts should be replaced in a timely manner.
◎ For details of motor and reducer maintenance, please refer to the maintenance instructions of the motor and reducer.



Technical specification:

Specification Drum size

Effective heating area

m2

Dry ability
kg.H2O/m2.h

Steam consumption

kg/h

Motor Power

kw

size

mm

Weight

kg

HG-600 Φ600×800 1.12 40-70 100-175 2.2 1700×800×1500 850
HG-700 Φ700×1000 1.65 60-90 150-225 3 2100×1000×1800 1210
HG-800 Φ800×1200 2.26 90-130 225-325 4 2500×1100×1980 1700
HG-1000 Φ1000×1400 3.30 130-190 325-475 5.5 2700×1300×2250 2100
HG-1200 Φ1200×1500 4.24 160-250 400-625 7.5 2800×1500×2450 2650
HG-1400 Φ1400×1600 5.28 210-310 525-775 11 3150×1700×2800 3220
HG-1600 Φ1600×1800 6.79 270-400 675-1000 11 3350×1900×3150 4350
HG-1800 Φ1800×2000 8.48 330-500 825-1250 15 3600×2050×3500 5100
HG-1800A Φ1800×2500 10.60 420-630 1050-1575 18.5 4100×2050×3500 6150



                                 Note: If the customer needs it, it can design and manufacture the upper feed dual roller scraper dryer for the customer.

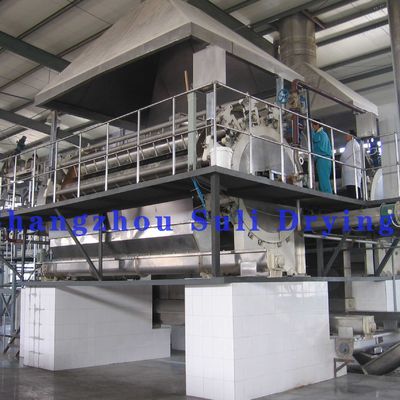

HG Series Drum Scraper Drying Machine for Wide Applicability 0
