Stainless Steel Horizontal Ribbon Mixer Gravity Industrial Drying Solutions

Stainless Steel Horizontal Ribbon Mixer Gravity Industrial Drying Solutions

MOQ: 1set
Supply Capacity: 100sets/Year
Detail Information
Brand Name
SULI
Stirring Type:
Gravity
Additional Capabilities:
Milling
Operating Type:
Cycle Operating
Trademark:
SU LI
Specification:
Deponds On The Model
Origin:
Jiangsu, China (Mainland)
Minimum Order Quantity:
1set
Supply Ability:
100sets/Year
High Light:

horizontal ribbon mixer gravity

,

gravity industrial drying solutions

,

stainless steel horizontal ribbon mixer

Product Description

Drum scraper dryer with steam or thermal oil as heat source and large heating area

Product Description

Features

1) Stable working, noiseless, easy to disassemble;

2) Available for continuous use;

3) Energy saving, compact structure, high precision transmission;

4) Strong loading capability and easy to assemble;

5) Less influenced by particle size and density;

6) With jacket or coil to heating;

7) Dedusting system and injection system for option;

8) Star/knife-edge/butterfly types valve for option;

9) Manual or pneumatic valve discharge.

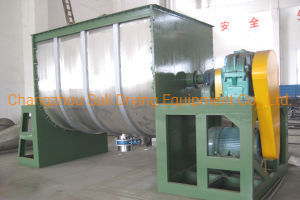

Stainless Steel Horizontal Ribbon Mixer Gravity Industrial Drying Solutions 0

Technical Parameters of Stainless Steel Horizontal Ribbon Mixer

Model

All volume
(M3)

Loads coefficient

Electrical machinery power
(KW)

Size(mm)× Max-diameter ×High

Equipment weight (kg)

WLDH-0.1

 0.1

0.4-0.8

 3

1190×740×770

330

WLDH-0.3

0.3

0.4-0.8

4

2030×630×980

720

WLDH-0.5

0.5

0.4-0.8

7.5

2320×730×1130

980

WLDH-1

1

0.4-0.8

11

2800×920×1320

1700

WLDH-1.5

1.5

0.4-0.8

11

3180×1020×1550

1800

WLDH-2

2

0.4-0.8

15

3310×1120×1640

2100

WLDH-3

3

0.4-0.8

  18.5

3750×1290×1820

3000

WLDH-4

4

0.4-0.8

22

4220×1400×1990

3980

WLDH-5

 5

0.4-0.8

 22

 4220×1500×2100

4620

WLDH-6

6

0.4-0.8

30

4700×1610×2260

6180

WLDH-8

8

0.4-0.8

37

4420×2150×2470

 8200

WLDH-10

10

0.4-0.8

45

5520×2960×2720

8920

WLDH-12

12

      0.4-0.8

45

  5720×3010×2840

 9520

WLDH-15

15

0.4-0.8

55

5840×3540×2940

9950

CHANGZHOU SULI DRYING EQUIPMENT CO.,LTD.is an innovative drying industry enterprises,the state drying equipment,pharmaceutical machinery,chemical and food machinery industry professional production companies.The company has always adhere to the"dedication,inovation,"the purpose of the work,continue to strengthen the development of innocative technological content of products and product currently has a drying,granulation,mixing,crushing nearly a hundred varieties of products.Widely used in pharmaceutial,chemical,food,enzymes,buildingmaterials,electronics,feed,agricultural processing and many other industries,has won the majority of users.

Since its establishment,holding"technology to upgrade the industry,quality and create value"business philosophy,brought together and trained a team of experienced produciton and technical services team,to continuously improve the product,updating and development to ensure that the advanced,high-quality products and good service to customers.
The company of"integrity,timely and thoughful"purpose of business services,through continuous efforts of all employees,will create greater value for you and return!
SuLi company with a variety of sample prototype,welcome friends to visit our small test!
